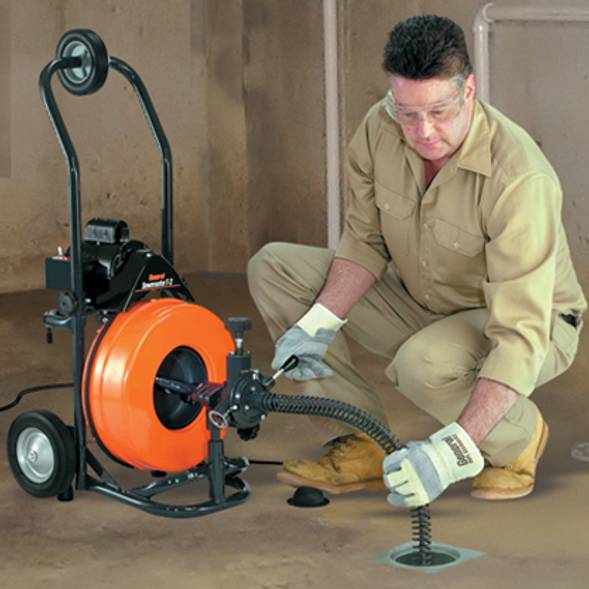

The Sewerooter T-3 combines large capacity
with great portability. The drum holds 100 ft.
of 1/2" or 75 ft. of 9/16"cable, which is fed into the line with
a smooth-operating variable speed Power
Cable Feed attachment. The machine rolls on
big 8" wheels, has a tough but lightweight

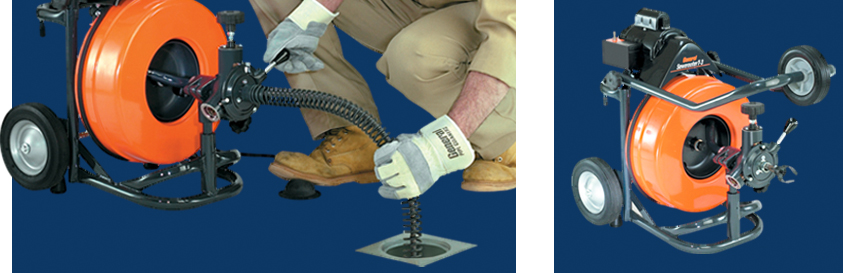

tubular frame, and a tall folding handle with
a truck loading wheel that makes it easy to
move around. And the passive brake holds
the machine in position on the job or in
your truck.
Other important features include a quickly
removable drum and a 1/3 hp motor ( or 1/2hp) with
capacitor. Like all General’s floor models, the
Sewerooter T-3 offers you the safety of a fully
grounded electrical circuit, a pneumatic foot
pedal and reverse switch with an "Off” position,
plus a Ground Fault Circuit Interrupter.
Specifications:
Weight: 61 lbs. (28 kg) less cable.
Overall Height: 37" (94 cm); 25" (54 cm) with handle folded down.
Drum: Equipped with inner drum and guide tube to prevent cable tangling under load. Cable can be driven or retracted from line while cable is rotating. Quickly removable from frame.
Capacity: 100 ft. (30 m) of 1/2" (12.7 mm) Flexicore wire rope center cable. Use 1/2" cable for 3" – 4" lines; 3/8" cable for 2" – 3" lines.
Motor: 1/3 hp ( or 1/2hp) heavy duty, capacitor-type with reverse.
Load Speed: 167 rpm.
Wheels: 8" semi-pneumatic tires with oilite bronze bushings. Passive brake locks wheels during operation.
Foot Switch: Pneumatic, with no electrical contact between pedal and motor.
Power Cord: 20 ft. 3-wire. In-line Ground Fault Circuit Interrupter.
Bearings: Oilite bronze.

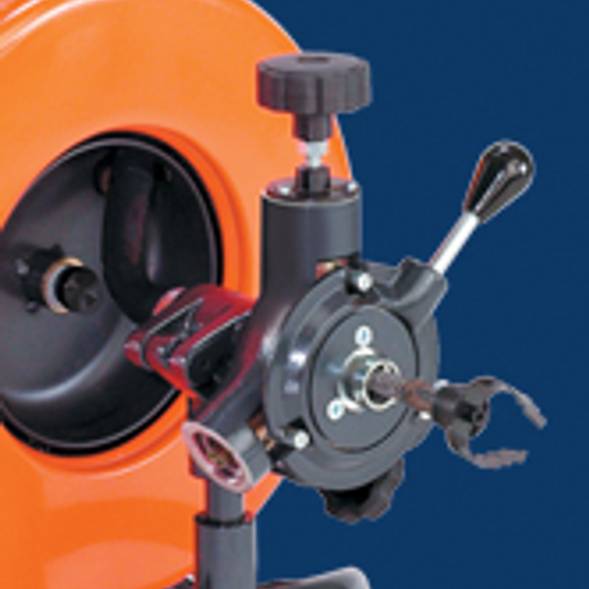

Power Cable Feed: Feeds and retracts cable at variable speed by moving control handle up or down.
Leather Gloves: With double-reinforced palm, for hand protection when guiding cable.
Standard T-3 Cutter Set: Flexible Leader, Arrow Head, 1-1/2" U-Cutter, 2" Side Cutter Blades, 3" Side Cutter Blades, 4" Side Cutter Blades, 3" Rotary Saw Blades, and Retrieving Tool.
Cables: 9/16" diameter for 3"- 5" lines , 1/2" diameter for 3" – 4" lines (Not for roots.) 3/8" diameter for 2" – 3" lines.
